Nudged Elastic Band

In this exercise you will compute the energy profile for a simple reaction in a planar cluster of 7 Ar atoms with the NEB method.

The NEB method requires at least the start- and end-configuration between which the reaction path should be computed. In addition it is advantageous to add a guess for an intermediate configuration. This is useful in particular when multiple reaction paths are possible and one is interested in a specific one. By adding a suitable intermediate configuration, the optimization can be guided towards the path of interest. However, keep in mind that the intermediate configuration is merely an initial guess and it's further optimized by the NEB algorithm.

The aim of this exercise is to compute the activation energy required for moving atom 2 (dark blue) into the center of the cluster.

In 2D there are at least two possible paths:

Path 1	Path 2

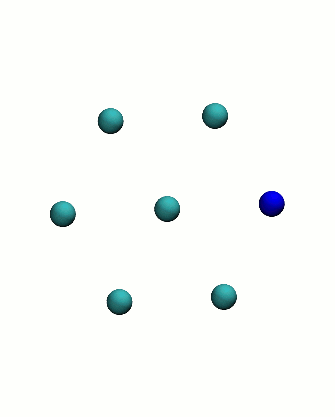

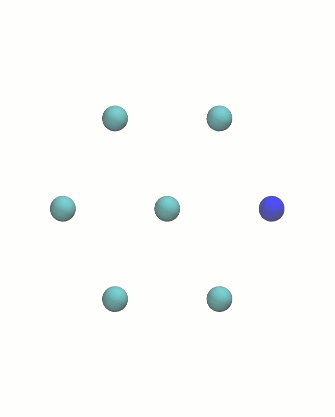

Direct exchange with the central atom	Coordinated rotation of three atoms

Path 1: direct exchange

1. Step

Save the following commented CP2K input file to a file named neb1.inp

neb1.inp

&GLOBAL
   RUN_TYPE BAND
   PROJECT_NAME neb1        ! the neb calculation will produce a few output files, that will be labeled with this name
&END GLOBAL
&MOTION
  &CONSTRAINT               ! we are working in 2d, and to keep things simple, we fix the z position of all the atoms (atom 1 to atom7)
   &FIXED_ATOMS
    COMPONENTS_TO_FIX Z
    LIST 1..7
   &END
  &END
  &BAND
   NPROC_REP 1              ! numebr of processors needed for each replica
   BAND_TYPE IT-NEB         ! type of NEB to be performed
   NUMBER_OF_REPLICA 10     ! number of replicas required
    &OPTIMIZE_BAND          ! parameters for the optimizer. This section is required and should not be changed
      OPT_TYPE DIIS
      &DIIS
       MAX_STEPS 1000
       N_DIIS 3
      &END
    &END
    &REPLICA                ! coordinates of the satting configuration (REQUIRED: has to be the first one in the input)
     &COORD
             -0.0000000000        0.0000000000       -0.0000000000
              3.8030201671       -0.0000003430       -0.0000000000
             -3.8030201671        0.0000003430        0.0000000000
              1.9019125593        3.2944696295       -0.0000000000
              1.9019119654       -3.2944699726        0.0000000000
             -1.9019119654        3.2944699726        0.0000000000
             -1.9019125593       -3.2944696295        0.0000000000
      &END
    &END REPLICA
    &REPLICA                ! intermediate configuration
     &COORD
              2.215467       -0.734540        0.000000
              2.144383        0.900403        0.000000
             -3.803020        0.000000        0.000000
              1.901913        3.294470       -0.000000
              1.901912       -3.294470        0.000000
             -1.901912        3.294470        0.000000
             -1.901913       -3.294470        0.000000
     &END
    &END REPLICA
    &REPLICA                ! ending configuration (REQUIRED: has to be the last one in the input)
      &COORD
              3.8030201671       -0.0000003430       -0.0000000000
              0.0000000000        0.0000000000       -0.0000000000
             -3.8030201671        0.0000003430        0.0000000000
              1.9019125593        3.2944696295       -0.0000000000
              1.9019119654       -3.2944699726        0.0000000000
             -1.9019119654        3.2944699726        0.0000000000
             -1.9019125593       -3.2944696295        0.0000000000
       &END
    &END REPLICA
   &END BAND
&END MOTION

&FORCE_EVAL        ! this section is the same as usual
  METHOD FIST
  &MM
    &FORCEFIELD
      &SPLINE
      EMAX_SPLINE 10000
      &END
      &NONBONDED
        &LENNARD-JONES
          atoms  Ar Ar
          EPSILON    [K_e] 119.8
          SIGMA [angstrom]   3.401
          RCUT  [angstrom]  25.0
        &END LENNARD-JONES
      &END NONBONDED
      &CHARGE
        ATOM Ar
        CHARGE 0.0
      &END CHARGE
    &END FORCEFIELD
    &POISSON
    PERIODIC NONE
      &EWALD
        EWALD_TYPE none
      &END EWALD
    &END POISSON
  &END MM
  &SUBSYS
    &CELL
    ABC [angstrom] 20 20 20
      PERIODIC NONE
   &END CELL
   &COORD        !starting coordinates, to be repeated here.
      Ar        -0.0000000000        0.0000000000       -0.0000000000
      Ar         3.8030201671       -0.0000003430       -0.0000000000
      Ar        -3.8030201671        0.0000003430        0.0000000000
      Ar         1.9019125593        3.2944696295       -0.0000000000
      Ar         1.9019119654       -3.2944699726        0.0000000000
      Ar        -1.9019119654        3.2944699726        0.0000000000
      Ar        -1.9019125593       -3.2944696295        0.0000000000
  &END COORD
  &END SUBSYS
&END FORCE_EVAL

2. Step: Run CP2K

$ cp2k.popt -i neb1.inp -o neb1.out

3. Step

For the NEB calcualtions, CP2k produces a few output files. The most important are:

neb1.out : standard CP2K output file. It tells you whether that the calculation is completed.
(See:Computation of the Lennard Jones curve for two Ar atoms.Part I, Step 3)
neb1-pos-Replica_nr_XXX-1.xyz : those are the replica optimization trajectories. You get a trajectory for each replica.
neb1-BANDXXX.out : geometry optimization output for each replica.

4. Step: Checking the trajectory

Here is a short script to create a movie.xyz file showing the trajectory from starting to ending point. Use this procedure to make sure that the trajectory you obtain is the one you actaully want to study. The movie.xyz can be read by VMD.

$ for a in 01 02 03 04 05 06 07 08 09 10 ; do tail -n 9 neb1-pos-Replica_nr_${a}-1.xyz >> movie.xyz ; done

5. Step: Generating the energy profile

Here is a short script to create an energy profile as a function of the replica number.

$ for a in 1 2 3 4 5 6 7 8 9 10 ; do grep ENERGY  neb1-BAND${a}.out | tail -n 1 | awk '{print '${a}',$9}' ; done > neb1_profile

The energy profile will be stored in the file neb1_profile. Any plotting program should be able to visualize it, e.g. gnuplot:

$ echo "plot 'neb1_profile' w l; pause mouse" |  gnuplot

Path 2: Coordinated rotation

Here is the input file for the PATH2. Following the same procedure as above, you can obtain a trajectory and an energy profile.

neb2.inp

&GLOBAL
   RUN_TYPE BAND
   PROJECT_NAME neb2
&END GLOBAL
&MOTION
  &CONSTRAINT
   &FIXED_ATOMS
    COMPONENTS_TO_FIX Z
    LIST 1..7
   &END
  &END
  &BAND
   NPROC_REP 1
   BAND_TYPE IT-NEB
   NUMBER_OF_REPLICA 20
    &OPTIMIZE_BAND
      OPT_TYPE DIIS
      &DIIS
       MAX_STEPS 1000
       N_DIIS 3
      &END
    &END
    &REPLICA
     &COORD
        -0.0000000000        0.0000000000       -0.0000000000
         3.8030201671       -0.0000003430       -0.0000000000
        -3.8030201671        0.0000003430        0.0000000000
         1.9019125593        3.2944696295       -0.0000000000
         1.9019119654       -3.2944699726        0.0000000000
        -1.9019119654        3.2944699726        0.0000000000
        -1.9019125593       -3.2944696295        0.0000000000
     &END
    &END REPLICA
    &REPLICA
     &COORD
        3.8030201671       -0.0000003430       -0.0000000000
        1.9019125593        3.2944696295       -0.0000000000
       -3.8030201671        0.0000003430        0.0000000000
        0 0 0
        1.9019119654       -3.2944699726        0.0000000000
       -1.9019119654        3.2944699726        0.0000000000
       -1.9019125593       -3.2944696295        0.0000000000
      &END
    &END REPLICA
    &REPLICA
     &COORD
         1.9019125593        3.2944696295       -0.0000000000
         0 0 0
        -3.8030201671        0.0000003430        0.0000000000
         3.8030201671       -0.0000003430       -0.0000000000
         1.9019119654       -3.2944699726        0.0000000000
        -1.9019119654        3.2944699726        0.0000000000
        -1.9019125593       -3.2944696295        0.0000000000
      &END
    &END REPLICA
   &END BAND
&END MOTION

&FORCE_EVAL
  METHOD FIST
  &MM
    &FORCEFIELD
      &SPLINE
      EMAX_SPLINE 10000
      &END
      &NONBONDED
        &LENNARD-JONES
          atoms  Ar Ar
          EPSILON    [K_e] 119.8
          SIGMA [angstrom]   3.401
          RCUT  [angstrom]  25.0
        &END LENNARD-JONES
      &END NONBONDED
      &CHARGE
        ATOM Ar
        CHARGE 0.0
      &END CHARGE
    &END FORCEFIELD
    &POISSON
    PERIODIC NONE
      &EWALD
        EWALD_TYPE none
      &END EWALD
    &END POISSON
  &END MM
  &SUBSYS
    &CELL
    ABC [angstrom] 20 20 20
      PERIODIC NONE
   &END CELL
   &COORD
Ar        -0.0000000000        0.0000000000       -0.0000000000
Ar         3.8030201671       -0.0000003430       -0.0000000000
Ar        -3.8030201671        0.0000003430        0.0000000000
Ar         1.9019125593        3.2944696295       -0.0000000000
Ar         1.9019119654       -3.2944699726        0.0000000000
Ar        -1.9019119654        3.2944699726        0.0000000000
Ar        -1.9019125593       -3.2944696295        0.0000000000
  &END COORD
  &END SUBSYS
&END FORCE_EVAL

Questions

Sketch the reaction profile for the two paths presented, reporting shape and activation energy.
What are the major differences between the profiles? How do you think the result will change by adopting different number of replicas?
